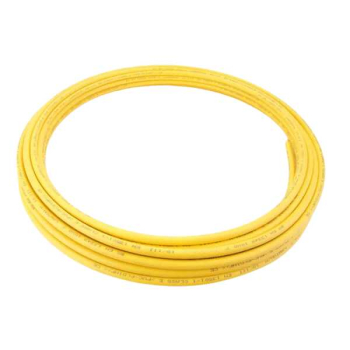

Copper Tube PVC Coated Coil 10mm x 25m

Copper Tube PVC Coated Coil 10mm x 25m

Stock Code: S04287
In Stock
£74.26 (exc VAT) per EACH
£89.11 (inc VAT)
Quantity: - +

Copper tube is made to EN 1057 standard and coated in plastic.

Plastic coated copper tube is useful for:

  • Outdoors and underground
  • Passing through walls

Identification purposes:

  • White for oil
  • Blue/green for water
  • Yellow for commercial gas



PVC Coated Copper Tubes



The Plastic that we are using for the tube coating is a Low Density Polyethylene along with a World Wide UV stabiliser.



The Physical properties are as follows:



Mechanical



Melting point: 114°C



Vicat Softening Point: 93°C (This can be generally treated as the maximum operating temperature)



Brittleness Point: < -75°C



Hardness: 55 Shore D



Tensile Break: 13.40 MPa



Flexural Strength: 8.10 MPa



Elongation at Break: 500%



Electrical



Volume Resistivity: >1015 Ohm-cm³



Surface Resistivity: >1015 Ohm -cm²



Length in M25m
Diameter10mm
