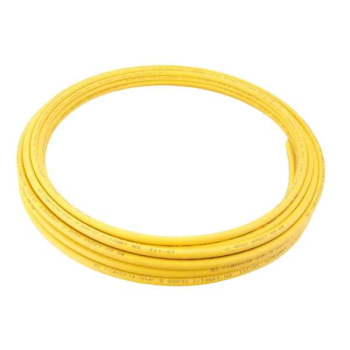

Copper Tube PVC Coated Coil 10mm x 50m

Stock Code: S04302
In Stock
£142.77 (exc VAT) per EACH
£171.32 (inc VAT)

Please contact our sales office to discuss details of this product, and for the current price.

01837 83492
web@southwestfixings.co.uk

or click on the Inquire Now button and fill in the form and one of our sales team members will get in touch to discuss the options.

Copper tube is made to EN 1057 standard and coated in plastic.

Plastic coated copper tube is useful for:

  • Outdoors and underground
  • Passing through walls

Identification purposes:

  • White for oil
  • Blue/green for water
  • Yellow for commercial gas



PVC Coated Copper Tubes



The Plastic that we are using for the tube coating is a Low Density Polyethylene along with a World Wide UV stabiliser.



The Physical properties are as follows:



Mechanical



Melting point: 114°C



Vicat Softening Point: 93°C (This can be generally treated as the maximum operating temperature)



Brittleness Point: < -75°C



Hardness: 55 Shore D



Tensile Break: 13.40 MPa



Flexural Strength: 8.10 MPa



Elongation at Break: 500%



Electrical



Volume Resistivity: >1015 Ohm-cm³



Surface Resistivity: >1015 Ohm -cm²



Length in M50m
Diameter10mm
