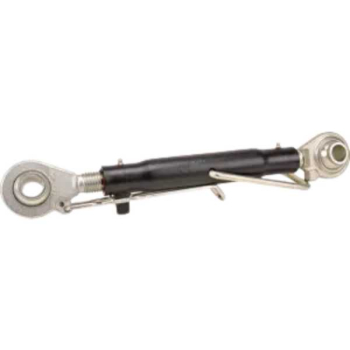

| Long description | Toplink M24 x 3,0 - M36 x 3,0
|
| Application range | |
| M30 for tractors up to 75 kW | |
| Properties | Zinc plated spindles |
| Tube, painted black | |
| Connections category
|
Eye - Eye
|
| Category by tractor side
|
2 |
| Category by machine side
|
2 |
| Rod length
|
290 mm
|
| Rod outside diameter
|
48,3 mm
|
| Min working length
|
425 mm
|
| Max working length
|
625 mm
|
| Thread type
|
Metric
|
| Thread diameter
|
M30
|
| Thread pitch
|
3.50 mm
|
| Connection hole diameter by tractor side
|
25,7 mm
|
| Connection hole diameter by machine side
|
25,7 mm
|
| Wall thickness
|
5,5 mm
|
| Max Length | 625mm |
|---|---|
| Type | Toplink |
| Thread | M30 |
| Category | 2/2 |
| Hole size | 25.7mm |
| Min Length | 425mm |
There are no downloads for this product.
