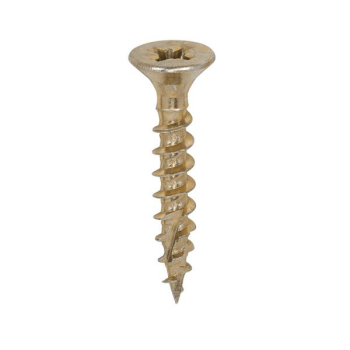

C2 Classic Screw 5.0 x 30 - 10 x 1 1/4Inch W/Screw (200)
v2

C2 Classic Screw 5.0 x 30 - 10 x 1 1/4" W/Screw (200)

Stock Code: 585878
In Stock
£3.68 (exc VAT) per EACH
£4.41 (inc VAT)
Quantity: - +



C2 Strong-Fix Multi-Purpose Premium Screws - PZ - Double Countersunk - Yellow

Finish Zinc & Yellow
Gauge 10
Pack Quantity Unit Pieces
Thread Ø (mm) 5
MOQ 1
Recess Type Pozi
Substrates Hardwood, Softwood, Chipboard, MDF, Plastic, Thin Sheet Metal
Material Carbon Steel
Head Ø (mm) 9.7
Pack Qty 200
Size (mm) 5.0 x 30
Thread Type 40° Single
Head Type Double Countersunk
Lubrication Gleitmo
Size (imp.) 10 x 1 1⁄4
Pack Type Box
Driver Bit Size PZ2
L (inch) 1 1⁄4
L (mm) 30
Packs per Carton 50
MOQ Increment 1
Thread L (mm) 25
Point Type Twin-Cut
Corrosion Rating (1-5) 2 - Occasionally damp/wet, rural and sheltered areas
Pack Weight (kg) 0.58
Pack Dimensions L x W x H (mm) 92 x 74 x 58
Size 5.0 x 30


5.0 x 30
Product Code: 50030C2
Pack Type: Box
Pack Quantity: 200 Pieces
Barcode: 5055331894212
A premium multi-material screw featuring the award winning C2 twin-cut technology. The dual angle full thread design ensures maximum pull-out strength on every fixing. Ideal for applications when optimum holding force is required such as hinges, brackets and high load environments.

• Deep recess to prevent 'cam-out', giving a precise and positive drive control on every screw
• Ribs under head for improved countersinking and to give a smooth and flush finish, also prevents splitting and material damage
• Coated with a high-molecular polymer lubricant that reduces the insertion torque by up to 52% and increases rust protection up to 20 times longer than a standard zinc plating
• Dual angle thread for ultimate performance and exceptionally high pull-out resistance
• Patented twin cut technology for rapid "pick-up" and reduces timber splitting
• All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length
Size5.0 x 30mm
Material compositionCarbon Steel
FinishZinc & Yellow
Box Quantity200
