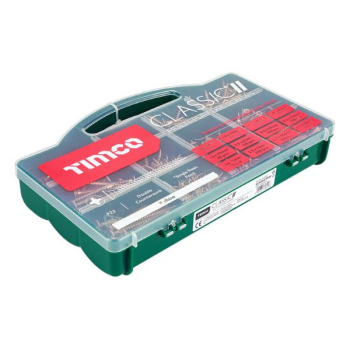

Classic Screw Mixed Tray

Classic Screw Mixed Tray

Stock Code: 585889
In Stock
£16.50 (exc VAT) per EACH
£19.80 (inc VAT)
Quantity: - +



Classic Multi-Purpose Screws - Mixed Tray - PZ - Double Countersunk - Yellow

895pcs
Lubrication Gleitmo
Head Type Double Countersunk
Driver Bit Size PZ2
Packs per Carton 6
Recess Type Pozi
MOQ 1
Finish Zinc & Yellow
Corrosion Rating (1-5) 2 - Occasionally damp/wet, rural and sheltered areas
Pack Type Tray
Material Carbon Steel
Tray Quantity 895
MOQ Increment 1
Feature 3 40° deep single thread to provide a secure fixing with high pull-out resistance
Feature 6 All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length
Feature 4 Surface hardened up to 750 HV to prevent torque shearing under load and a core hardness of up to 450 HV for improved ductility
Feature 5 Single slash on 25mm+ to reduce torque and the likelihood of the timber splitting when the screw is inserted close to the edge
Feature 2 Patented lubrication, designed to enhance screw insertion time and provides greater resistance to corrosion
Feature 1 Double countersunk reduces the likelihood of head shear and assists completion of countersinking
Brand TIMCO


Product Code: CLASSICTRAY
Pack Type: Tray
Pack Quantity: 895 Pieces
Barcode: 5055331818218
Specifically designed as a multi-purpose product, the 25° sharp point, special thread design, lubrication and corrosion resistant plating ensures the screw will consistently perform efficiently in hardwood, chipboard, MDF, plastic and thin sheet metal, whilst offering exceptional holding power. NOTE: Single slash from 25mm.

• Double countersunk reduces the likelihood of head shear and assists completion of countersinking
• Patented lubrication, designed to enhance screw insertion time and provides greater resistance to corrosion
• 40° deep single thread to provide a secure fixing with high pull-out resistance
• Surface hardened up to 750 HV to prevent torque shearing under load and a core hardness of up to 450 HV for improved ductility
• Single slash on 25mm+ to reduce torque and the likelihood of the timber splitting when the screw is inserted close to the edge
• All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length

Material compositionCarbon Steel
FinishZinc & Yellow
Box Quantity895
