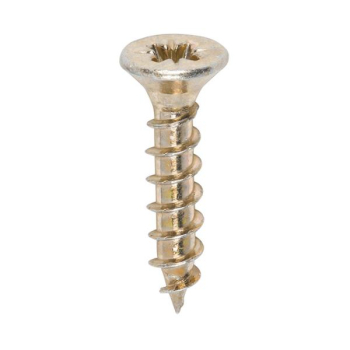

Posi Drive 3.0 x 15 -4 x 5/8Inch W/Screw (200)
v2

Posi Drive 3.0 x 15 -4 x 5/8" W/Screw (200)

Stock Code: 586059
In Stock
£1.20 (exc VAT) per EACH
£1.44 (inc VAT)
Quantity: - +

Solo Chipboard & Woodscrews - PZ - Double Countersunk - Yellow

3.0 x 15

Size (mm) 3.0 x 15
Lubrication Wax
Thread Type 40° Single Deep
Substrates Softwood, Chipboard, MDF, Masonry (with plug)
Packs per Pallet 5040
MOQ Increment 1
Head Type Double Countersunk
Corrosion Rating (1-5) 1 - Clean, dry & low humidity environments
Thread L (mm) 10
Size (imp.) 4 x 5⁄8
Material Carbon Steel
Packs per Carton 140
L (inch) 5⁄8
Finish Zinc & Yellow
Pack Type Box
Recess Type Pozi
L (mm) 15
Head Ø (mm) 5.82
Point Type 25° Sharp
Pack Qty 200
Thread Ø (mm) 3
Pack Quantity Unit Pieces
Inner Thread Ø d1 (mm) 2
Driver Bit Size PZ1
MOQ 1
Gauge 4
Feature 4 25° sharp point and single lead for a fast start and improved thread acceptance
Feature 1 Double countersunk reduces the likelihood of head shear and assists completion of countersinking
Brand TIMCO
Feature 3 40° deep single thread to provide a secure fixing with high pull-out resistance
Feature 2 Wax lubricated to enhance screw insertion time, extra driving torque and resistance to corrosion
Feature 5 All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length
Thread Coverage Fully Threaded
Pack Weight (kg) 0.1
Pack Dimensions L x W x H (mm) 56 x 40 x 38


Product Code: 30015SOLOC
Pack Type: Box
Pack Quantity: 200 Pieces
Barcode: 5055017530663
A single thread woodscrew mainly used in various types of timber and man-made boards or into masonry with the use of a plastic plug.

• Double countersunk reduces the likelihood of head shear and assists completion of countersinking
• Wax lubricated to enhance screw insertion time, extra driving torque and resistance to corrosion
• 40° deep single thread to provide a secure fixing with high pull-out resistance
• 25° sharp point and single lead for a fast start and improved thread acceptance
• All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length
Size3.0 x 15mm
Material compositionCarbon Steel
FinishZinc & Yellow
Box Quantity200
